erstatnings løsning fundet
Eksisterende pumpe - Cirkulation Pumpekurve
Fabrikat
Ældre Wilo
Produkt navn
DL-E 80/8-40 BF
Artikelnummer
2106838
Byggelængde
440 mm
Spænding
3x400 V
Pumpehusgange/-flange
DN 80 PN10/16
Nominel effekt
15 kW
Udskiftningspumpe - Højeffektiv Standard Udskiftningblad
Produkt navn
Yonos GIGA2.0-D 80/140-15/2
Artikelnummer
2238072
MEI
≥ 0,4
IE
4
Byggelængde
440 mm
Spænding
3x400 V
Pumpehusgange/-flange
DN 80 PN10/16
Nominel strøm
26,2 A
Nominel effekt
14,3 kW
Medietemperatur
-20 - +140 °C
Bemærkninger
Passer uden krav om ombygning af rørsystemet.
Kontakt Wilo-Teknisk indesalg ved pumpning med glycol eller har speciel materiale krav.
Produktinformation
Yonos GIGA2.0-D 80/140-15/2
Yonos GIGA2.0-D 80/140-15/2
Artikelnummer
: 2238072
VVS-nummer
:
Effektiv pumpning af store vandmængder til varme-, klima- og køleanlæg i store bygninger.

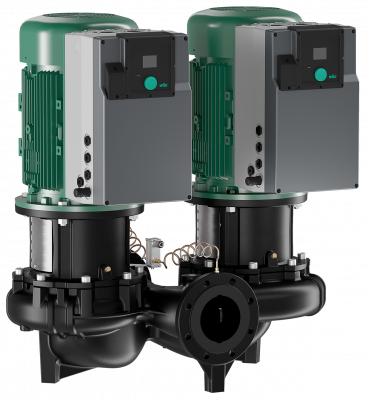

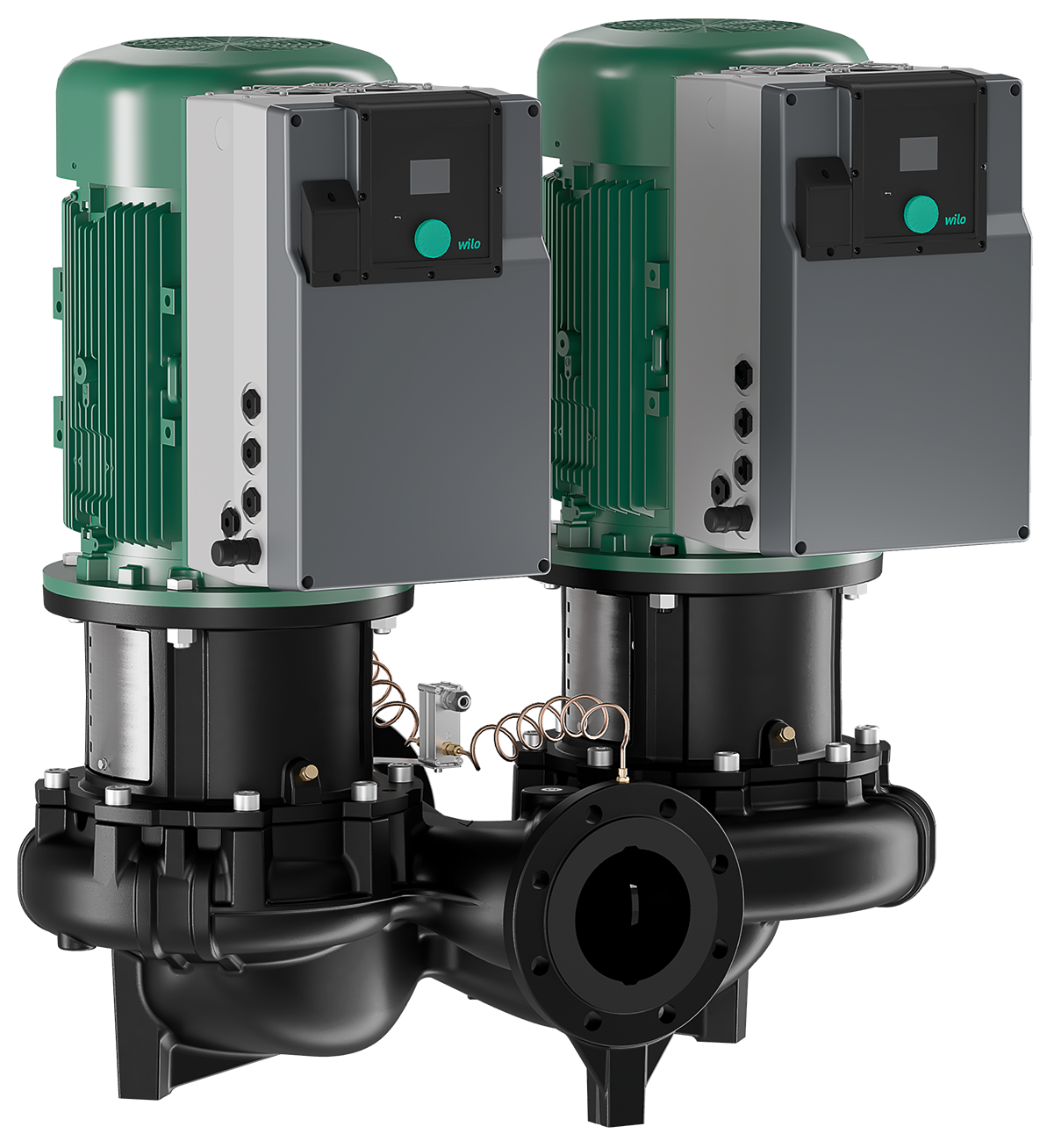

Wilo-Yonos GIGA2.0-D er en elektronisk styret inline-tørløberpumpe, som egner sig til pumpning af store vandmængder over store løftehøjder. Med gennemprøvet pumpehydraulik (MEI ≥ 0,4) og avanceret motorteknologi tilbyder den IE5- og IE4-motorer, der leverer tilsvarende høj energieffektivitet og pålidelighed, afhængigt af pumpetypen. Den er meget nem at betjene ved hjælp af den velkendte grøn-knap-teknologi, klar menunavigation og et overskueligt farvedisplay. Analoge og digitale grænseflader byder på mulighed for integration i bygningsautomatisering.
Wilo-Yonos GIGA2.0-D er en elektronisk styret inline-tørløberpumpe, som egner sig til pumpning af store vandmængder over store løftehøjder. Med gennemprøvet pumpehydraulik (MEI ≥ 0,4) og avanceret motorteknologi tilbyder den IE5- og IE4-motorer, der leverer tilsvarende høj energieffektivitet og pålidelighed, afhængigt af pumpetypen. Den er meget nem at betjene ved hjælp af den velkendte grøn-knap-teknologi, klar menunavigation og et overskueligt farvedisplay. Analoge og digitale grænseflader byder på mulighed for integration i bygningsautomatisering.
Flange gasket DN 80 PN6/10
Artikelnummer: 2175880
VVS-nummer:
- Thickness: 2 mm.
- Inner diameter: 90 mm.
- Outer diameter: 132 mm.
CIF-Modul BACnet
Artikelnummer: 2190367
VVS-nummer: 381278300
Interface modules as retrofittable plug-in modules for extending the communication interfaces of the pump in accordance with various standards and protocol variants according to type key.
General functions
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
General functions
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
- Control commands to the pump
- Messages from the pump
- Process values
CIF-Modul CAN
Artikelnummer: 2190369
VVS-nummer: 381278301
Interface modules as retrofittable plug-in modules for extending the communication interfaces of the pump in accordance with various standards and protocol variants according to type key.
General functions
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
General functions
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
- Control commands to the pump
- Messages from the pump
- Process values
CIF-Modul LON
Artikelnummer: 2190370
VVS-nummer: 381278302
General functions:
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
- Control commands to the pump
- Messages from the pump
- Process values
CIF-Modul Modbus
Artikelnummer: 2190368
VVS-nummer: 381278303
Interface modules as retrofittable plug-in modules for extending the communication interfaces of the pump in accordance with various standards and protocol variants according to type key.
General functions:
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
General functions:
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
- Control commands to the pump
- Messages from the pump
- Process values
CIF-Modul PLR
Artikelnummer: 2190371
VVS-nummer: 381278304
Interface modules as retrofittable plug-in modules for extending the communication interfaces of the pump in accordance with various standards and protocol variants according to type key.
General functions:
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
General functions:
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
- Control commands to the pump
- Messages from the pump
- Process values
CIF-Module Ethernet
Artikelnummer: 2211408
VVS-nummer: 381278310
Interface modules as retrofittable plug-in modules for extending the communication interfaces of the pump in accordance with various standards and protocol variants according to type key.
General functions
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
General functions
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
- Control commands to the pump
- Messages from the pump
- Process values
CIF-Modul Modbus TCP
Artikelnummer: 2211409
VVS-nummer:
Interface modules as retrofittable plug-in modules for extending the communication interfaces of the pump in accordance with various standards and protocol variants according to type key.
General functions:
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
General functions:
Serial, digital interface for connection to building automation (BA) for the transfer of data points as:
- Control commands to the pump
- Messages from the pump
- Process values
