1 erstatnings løsning fundet

Eksisterende pumpe - Borehul

Fabrikat Ebara
Produkt navn Idrogo M40/10
Spænding 1x230 V
Pumpehusgange/-flange Rp 32
Nominel effekt 0,75 kW

Udskiftningspumpe - Premium Udskiftningblad

Produkt navn TWI 5 306 EM
Artikelnummer 4104119
Spænding 1x230 V
Pumpehusgange/-flange Rp 32
Nominel strøm 5,6 A
Nominel effekt 0,75 kW
Medietemperatur +5 - +35 °C

Bemærkninger

Corresponding connection dimension.
f the existing pump is equipped with a float switch, TWI 5 in FS version must be selected. Contact Wilo Customer Support.

Produktinformation

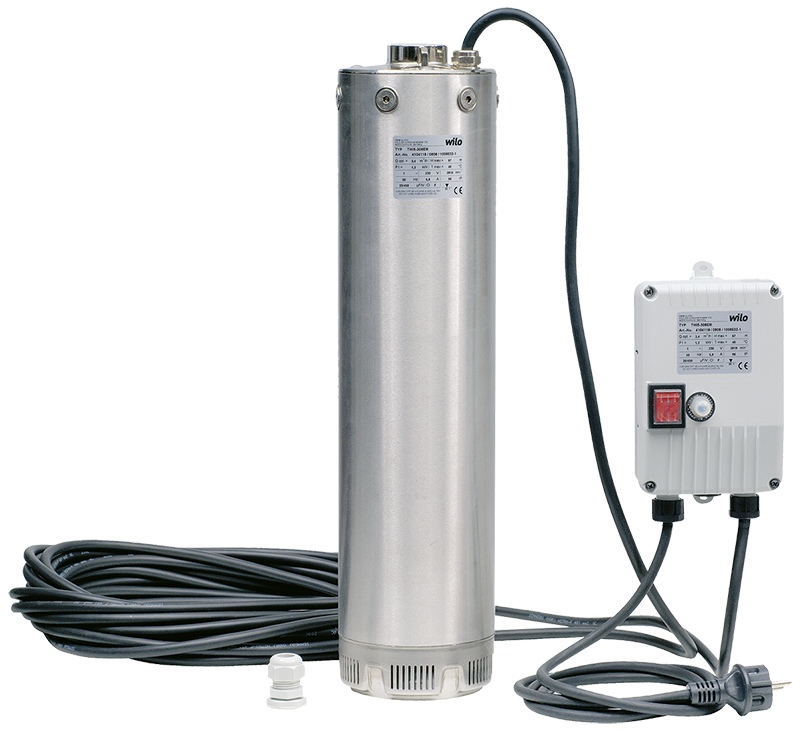

TWI 5 306 EM

TWI 5 306 EM
Artikelnummer: 4104119
VVS-nummer:

Your advantages
  • Highly efficient thanks to optimised hydraulics
  • Self-cooling motor (dry well installation out of the water is possible)
  • Single-phase current version, pre-assembled with switchbox and motor protection for an easy installation
  • Easy handling, maintenance and repair
  • Corrosion-resistant and low-wearing
Construction
5" submersible pump in stainless steel, multistage.

Application
Submersible pumps:
  • Pumping from wells, rainwater storage tanks and vessels
  • Irrigation, sprinkling and pumping out
  • Water supply
  • Rainwater utilisation
Equipment/function
  • 20 m safety cable
  • 20 m H07RN-F cable
  • Single-phase AC version
  • Pre-assembled with switchbox
  • Overcurrent protection of the motor
Scope of delivery
  • Pump with 20 m connecting cable
  • Safety cable made of polypropylene
  • Installation and operating instructions
Technical data
  • Mains connection 1~230 V, 50 Hz / 3~400 V, 50 Hz
  • Fluid temperature max. +5 °C to +35 °C
  • Max. operating pressure 10 bar
  • Protection class IP 68
  • Pressure-side connection Rp 1¼
  • Connection on suction side for SE version Rp 1¼
Materials
  • Pump housing: Stainless steel 1.4301
  • Impeller: 1.4301
  • Shaft: 1.4301
  • Mechanical seal: SIC/SIC and carbon/ceramic
  • Stage chambers: 1.4301
  • Diffuser/injector: 1.4301
  • Gaskets: NBR
Description/construction
  • Multistage construction complete in AISI304
  • ACS & WRAS certified
  • Double mechanical seal SIC/SIC
  • Detachable connection cable
  • Generously dimensioned water-cooled motor
  • Scope of delivery includes 20 m connection cable and safety rope

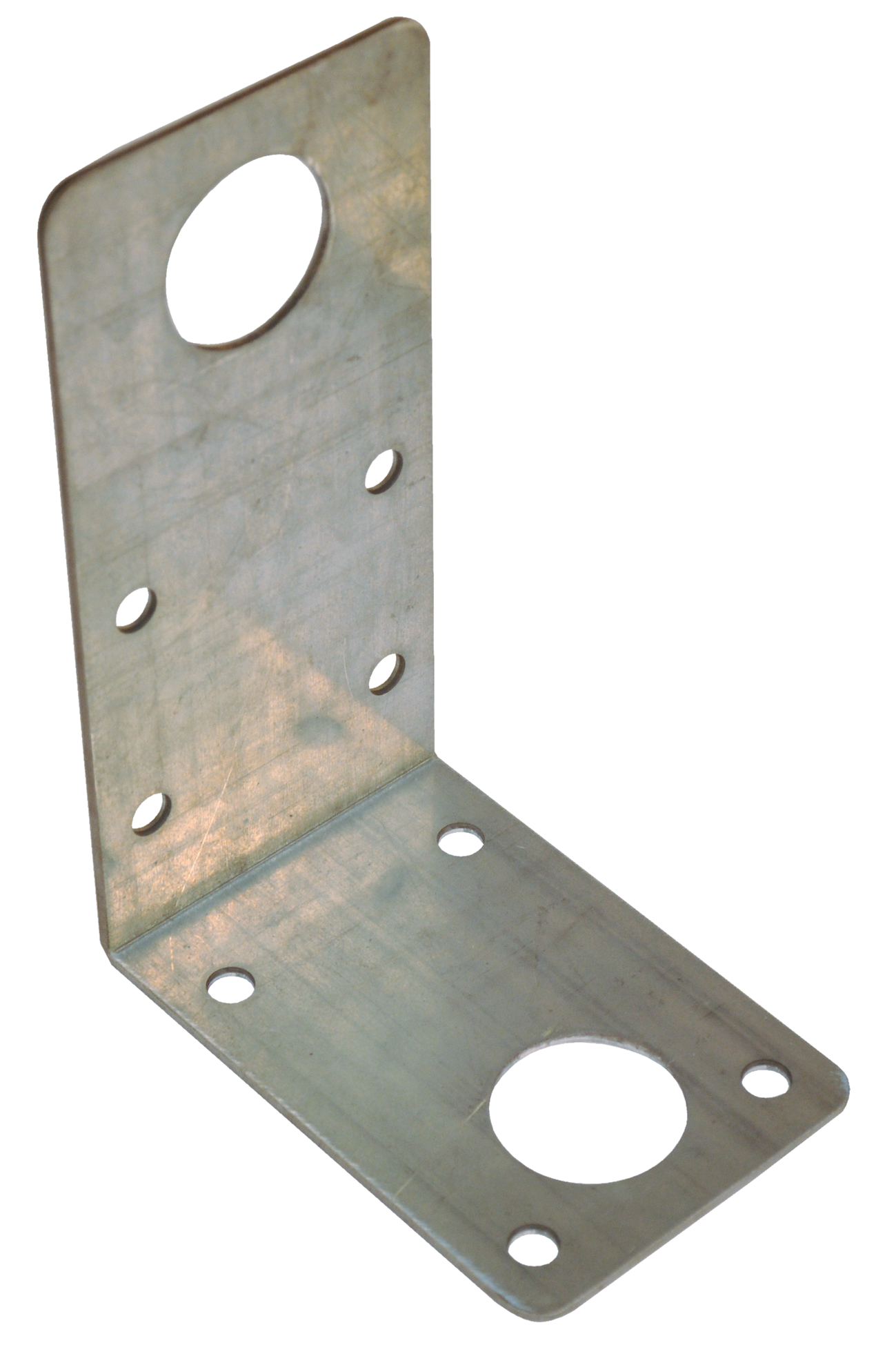

Bracket HiControl
Artikelnummer: 4027326
VVS-nummer:
Mount HiControl:
Wall bracket for mounting Wilo-HiControl 1-EK.

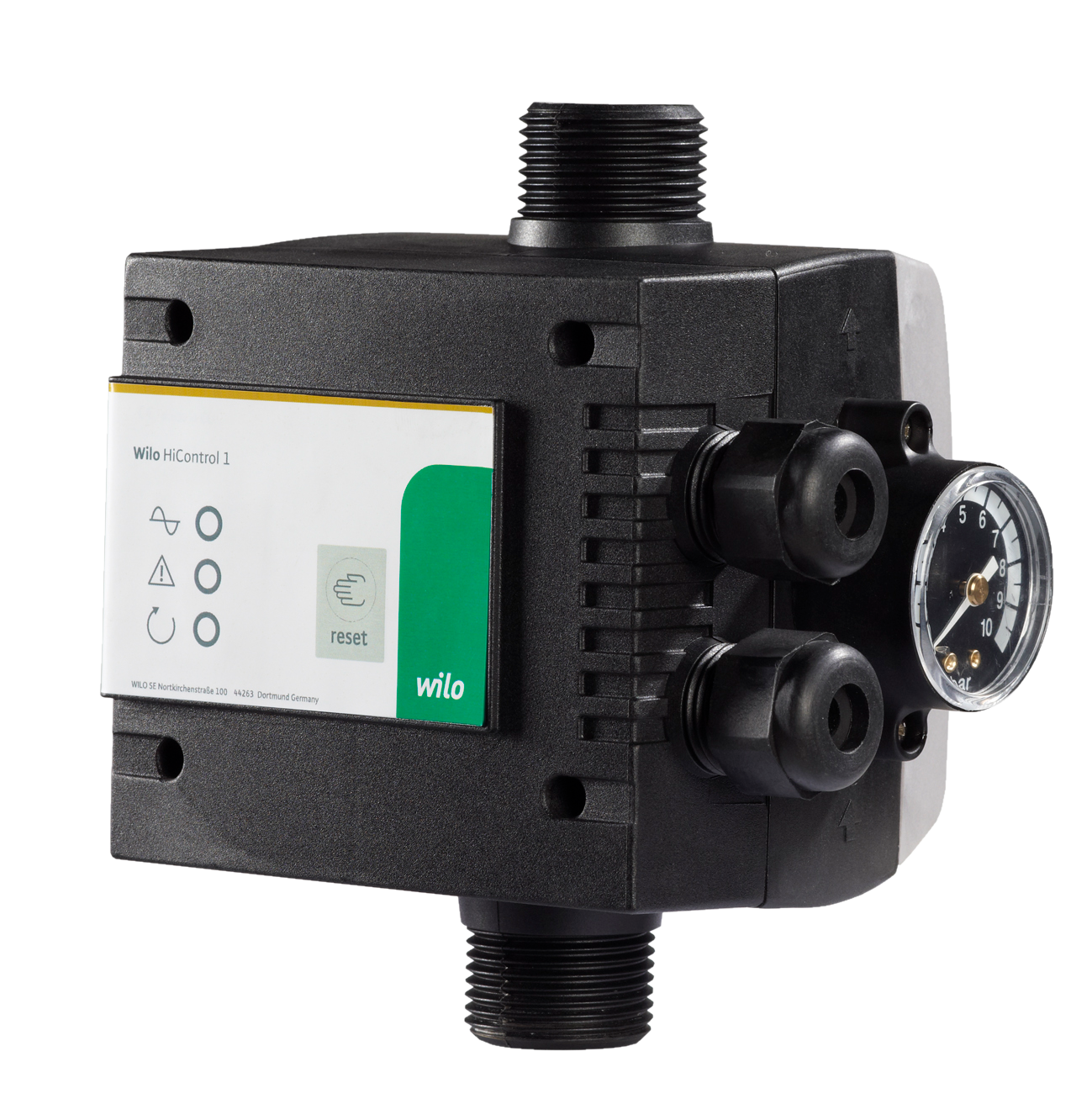

HiControl 1-EK
Artikelnummer: 2836138
VVS-nummer:
